[BAS] CAP Java(CDS) 프로젝트 기본 셋팅

BAS는 Visual Studio Code의 Web 버전입니다.

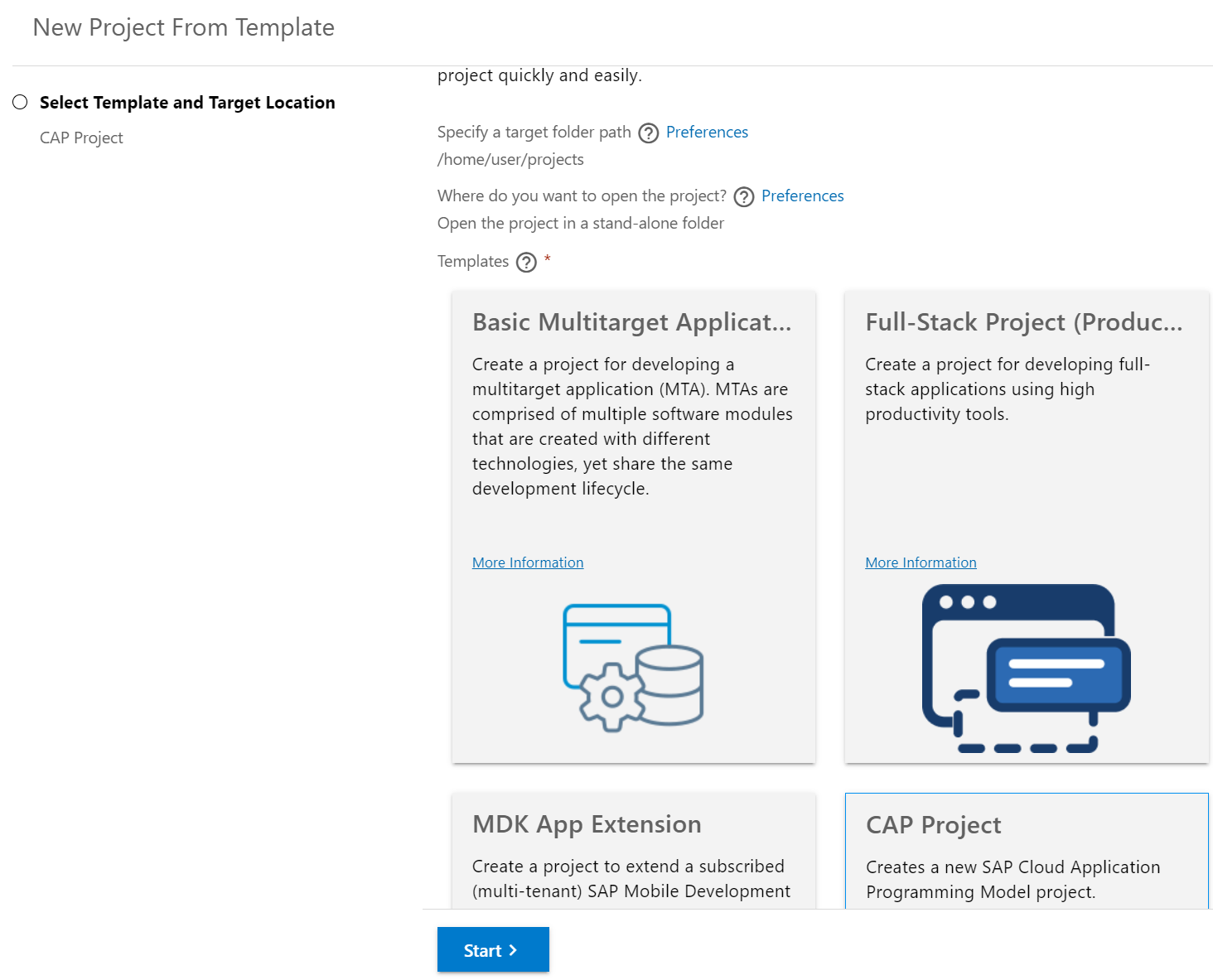

1. New Project From Template에서 CAP Project 선택 후 Start 버튼 클릭

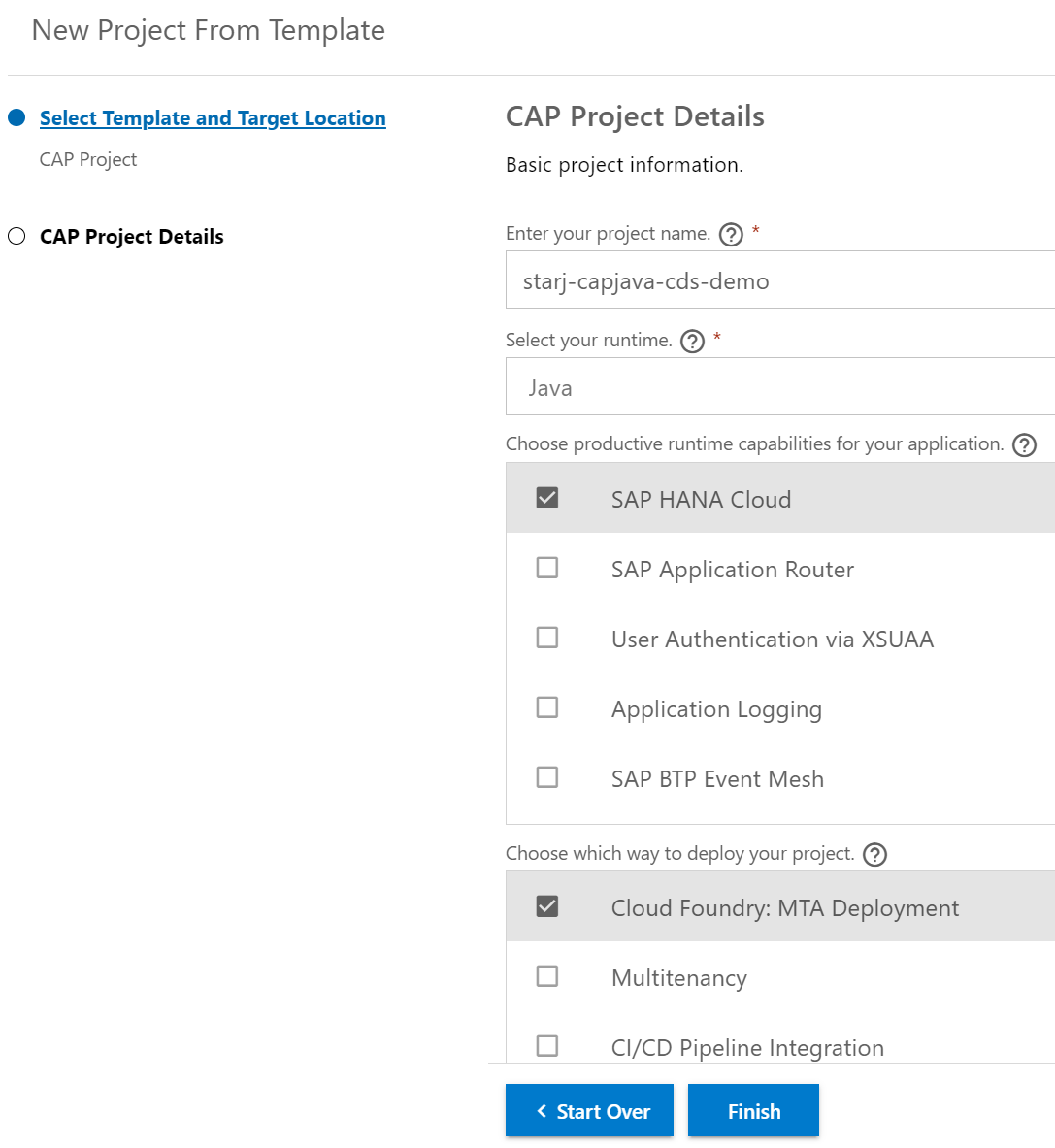

2. CAP Project Details에서 다음과 같이 입력 및 체크하고 Finish 버튼 클릭합니다.

 1) 프로젝트명 입력

 2) Select your runtime에 Java 선택

 3) SAP HANA Cloud와 Cloud Foundry: MTA Deployment 체크



3. 소스 작성

 3-1. db/schema.cds

namespace org.starj.cds.demo;

using { Currency, managed, sap } from '@sap/cds/common';

type GeoPoint     : String;
type Timezone     : String;
type CountryCode  : String(2);
type LanguageCode : String(2);

entity Countries {
  official_language   : LanguageCode;
  key country_code    : String(2);
  iso3_code           : String(3);
  onu_code            : Integer;
  name_en             : String;
  name_fr             : String;
  name_sp             : String;
  geo_point           : GeoPoint;
}

entity Populations {
  key id              : Integer;
  name                : String;
  ascii_name          : String;
  alternate_name      : String;
  feature_class       : String(1);
  feature_code        : String;
  country_code        : CountryCode;
  country             : Association to Countries on country_code = country.country_code;
  population          : Integer;
  elevation           : Integer;
  timezone            : Timezone;
  geo_point           : GeoPoint;
}

namespace org.starj.cds.demo;

using { org.starj.cds.demo as model } from '../db/schema';

service MainService @(path:'/main') {
  entity Countries as projection on model.Countries excluding { onu_code, geo_point };
  entity Populations as projection on model.Populations;

  action adjustPopulation(population_id: model.Populations:id, population: Integer);
};
